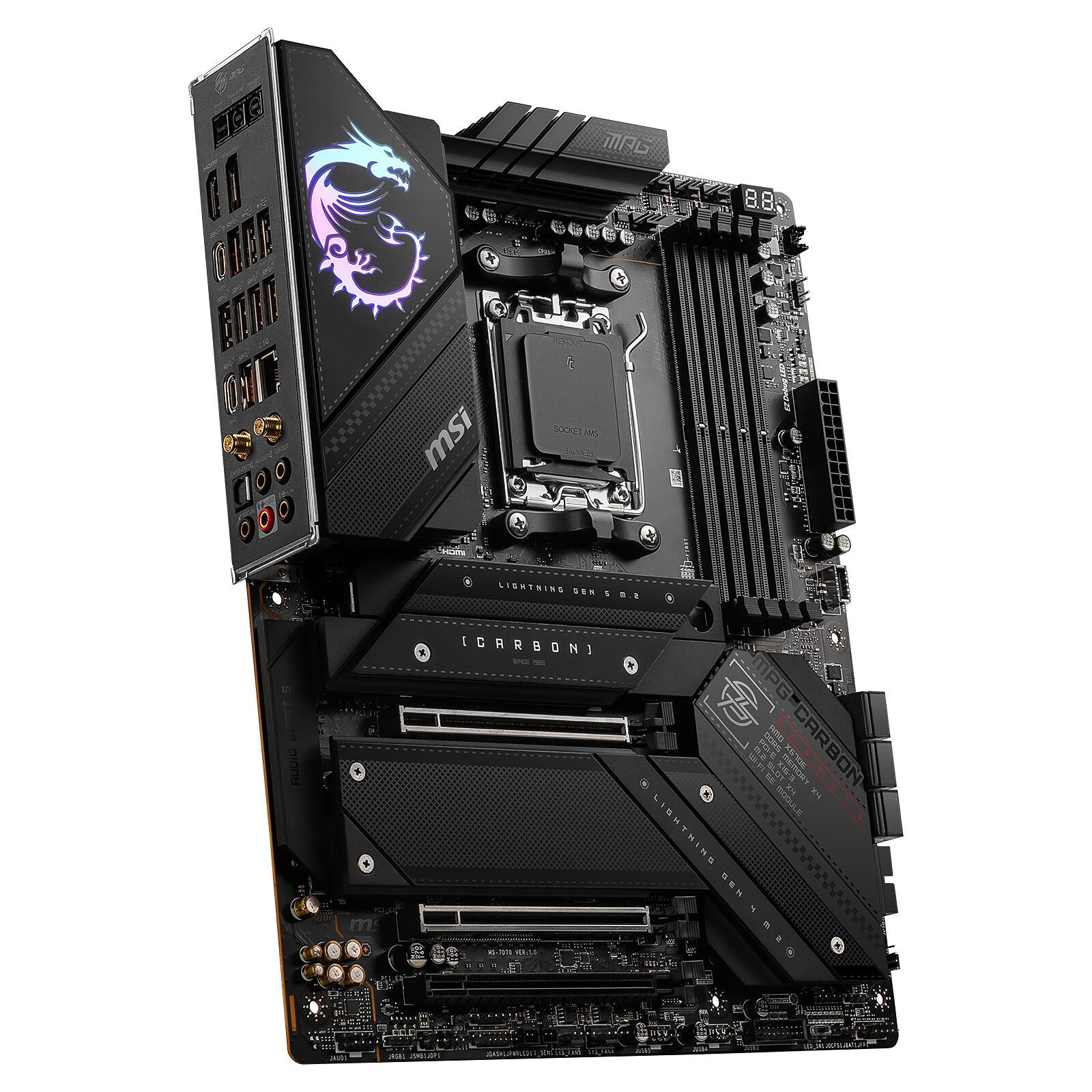

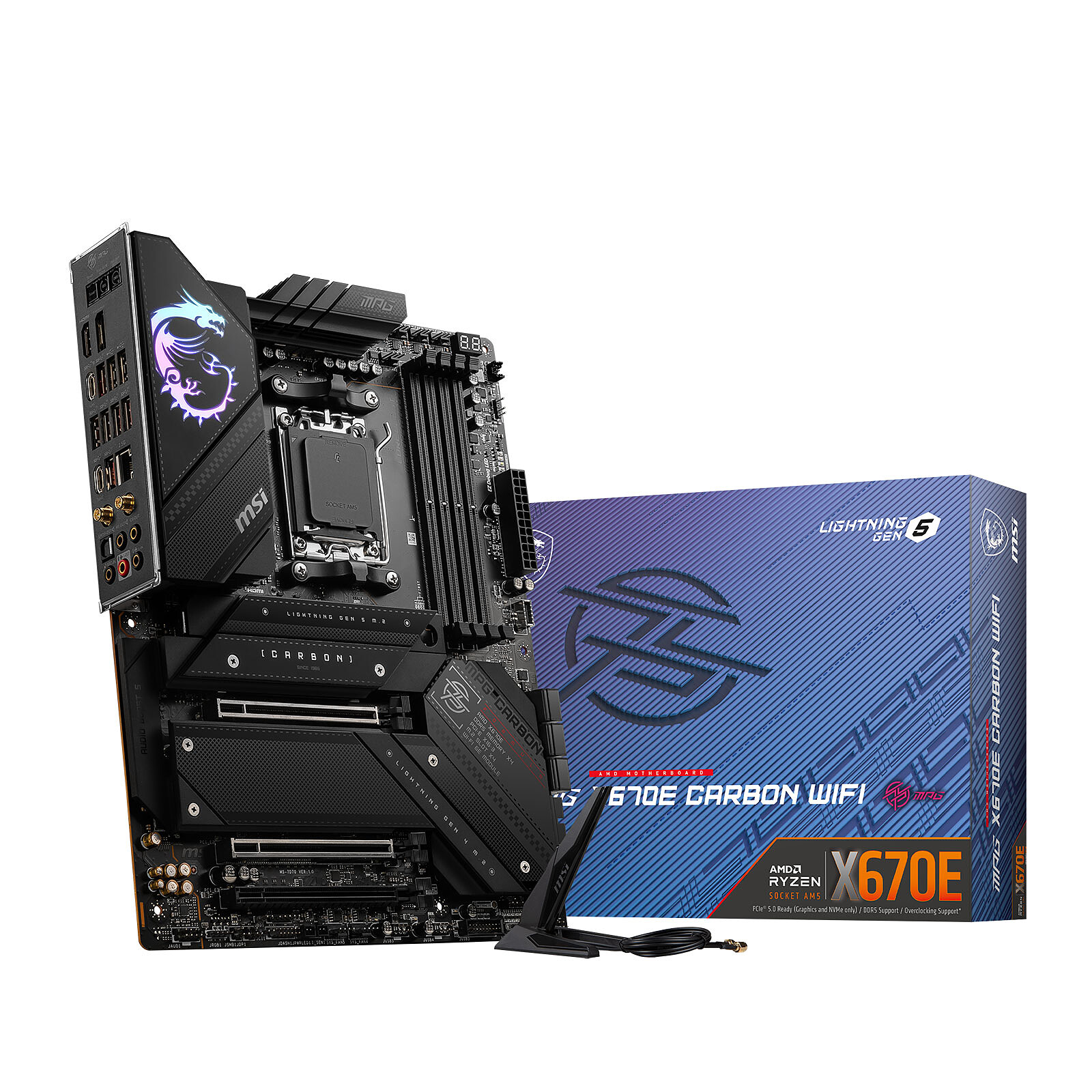

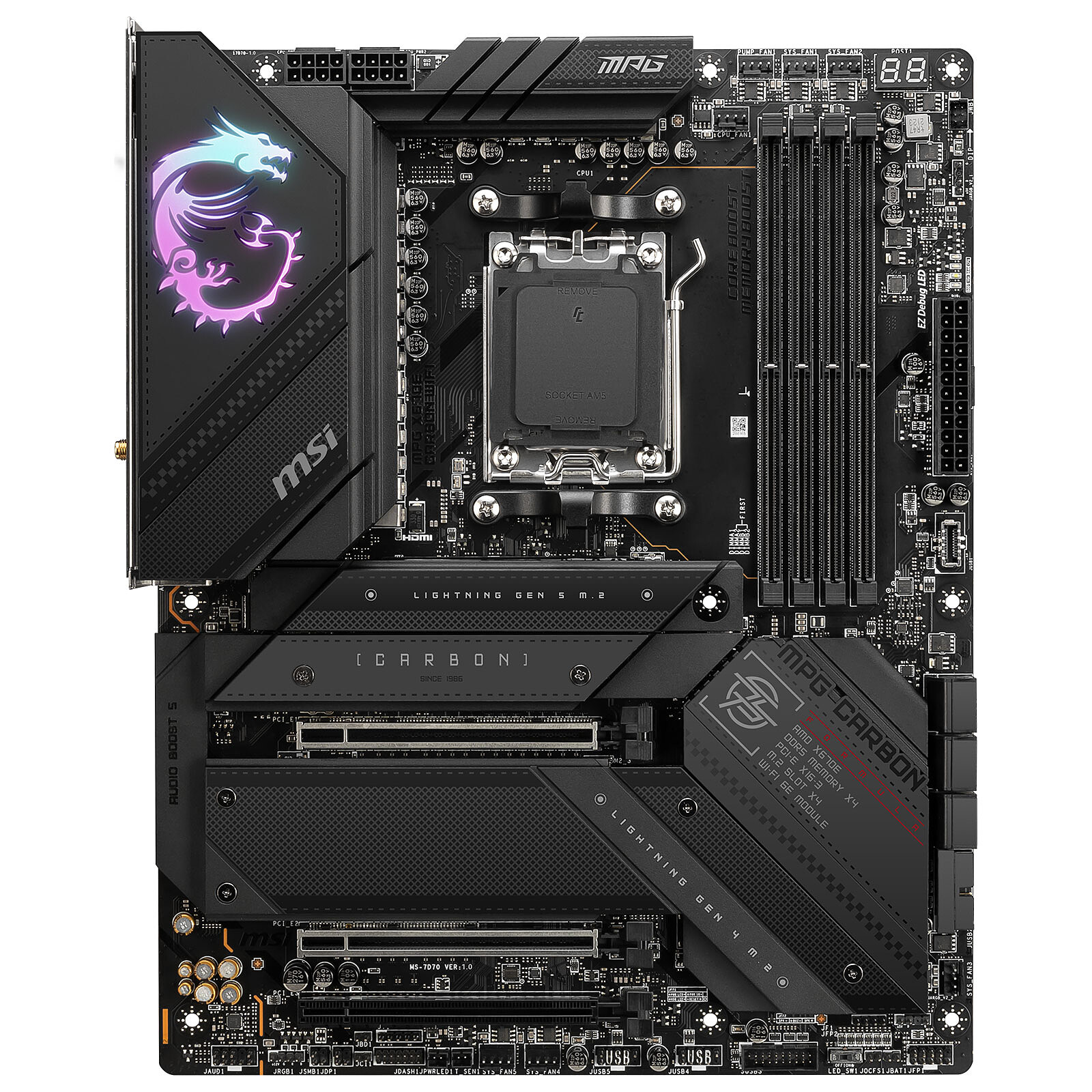

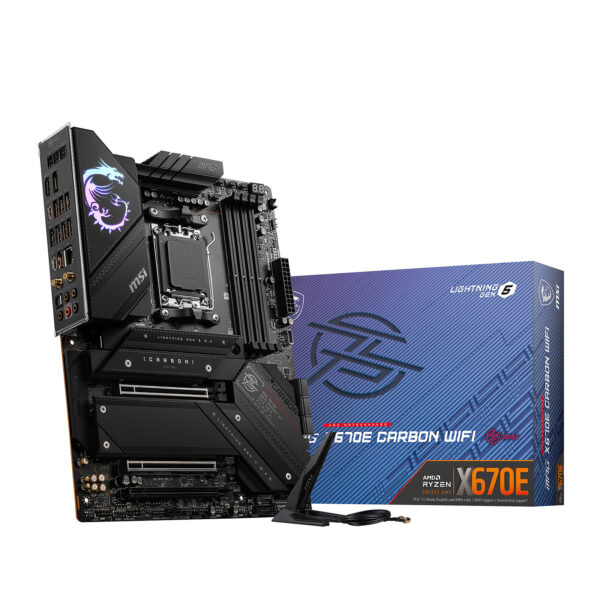

MPG X670E CARBON WIFI
- Support for AMD Ryzen™ 7000 series desktop processors
- Support for 7800 MHz DDR5 memory (OC)
- Dual-rail 18+2+1 phase power supply, dual 8-pin power connectors and Core Boost and Memory Boost technologies
- Advanced cooling solution with a larger heatsink incorporating direct-contact heat pipes, 7 W/mK MOSFET thermal pads, additional thermal pads for power inductors and double-sided M.2 Shield Frozr slots
- High-quality server-grade printed circuit board with 8 layers of 2-ounce copper
- Easy-to-mount design with patented screwless M.2 Shield Frozr slots, EZ M.2 clips, Smart Button, pre-installed I/O panel and Steel Armor design
- Ultra-fast data transfer with PCIe 5.0, M.2 Lightning Gen5 x4 and USB 3.2 Gen2x2 connectors
- 2.5G LAN connector and Wi-Fi 6E standard for a fast, stable connection
- Mystic Light technology for RGB LED backlighting with 16.7 million colours
- Mystic Light Sync technology supporting ARGB Gen2 LED ribbons, RGB ribbons and Ambient devices
- Audio Boost 5 HD for perfect audio quality and a more immersive experience
Competitive advantages
- Larger heatsink: The large heatsink increases the heat dissipation surface area, ensuring that high-end processors can operate at full speed.
- Direct contact heat pipes: The heat pipes connect the two MOSFET heatsinks to increase the heat dissipation surface area.
- M.2 Shield Frozr: These slots keep M.2 SSDs at the right temperature and prevent them from throttling. They can therefore deliver their full speed.
- 7 W/mK thermal pads: The 7 W/mK thermal pads and additional power inductors ensure you get the most out of your processor’s performance.
- Improved cooling for M.2 SSDs: The double-sided M.2 Shield Frozr slots and larger heatsink are designed to keep PCIe M.2 SSDs at the right temperature and prevent them from throttling.
- Larger PCH heatsink: The larger format of the PCH heatsink helps reduce dust build-up and noise and ensures efficient heat dissipation.
